Description

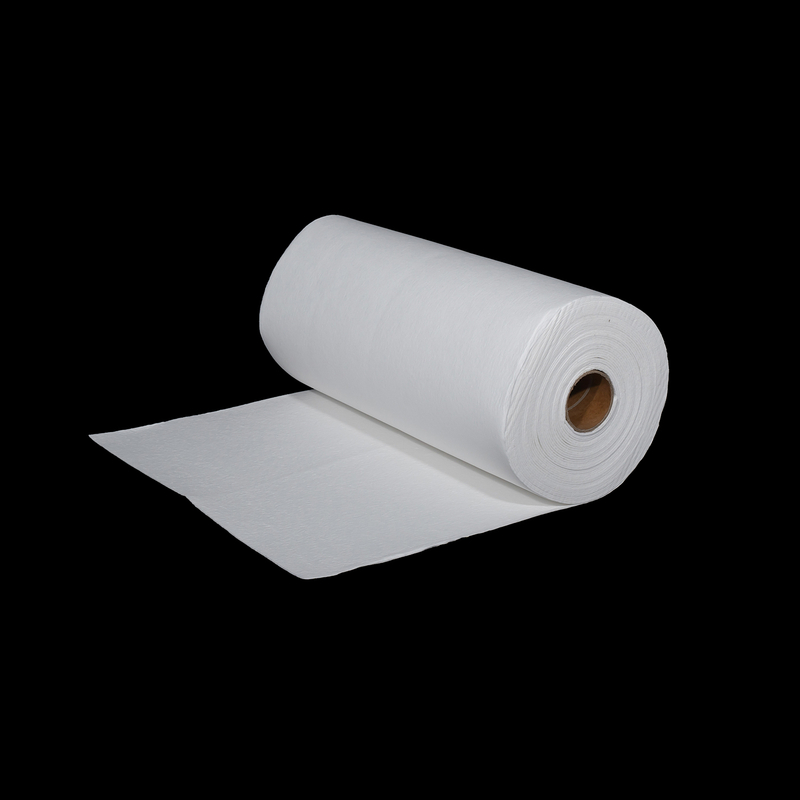

Bio Soluble Paper is a lightweight refractory material processed from soluble fibers into a highly flexible, uniform sheet. It is recommended for continuous use at temperatures up to 1000°C. Bio Soluble Paper has low shrinkage, good handling strength and low thermal conductivity. It contains a small amount of organic binder which makes it flexible, and reduces off-gassing and odour during using.
Features
Easy to cut, wrap or form
Temperature stability
Low thermal conductivity
Excellent flexibility
High fired tensile strength
Excellent flame resistance
Typical Applications
Replacement of asbestos paper
Investment cast mold wrap insulation
One-time consumable insulating applications
Back-up lining for metal troughs
Hot top lining
Applications where low binder content is required
Thermal and electrical insulation
Upgrade for fiberglass paper and blanket
Typical Parameters
DAYAWOOL® BIO SOLUBLE PAPER | 1260-BIO PAPER |
Classification Temperature (℃) | 1260 |
Maximum Operating Temperature(℃ ) | 1000 |
Tensile Strength (MPa) | ≥0.4 |
Density （kg/m3） | 190-210 |
Water Content (%) | ≤0.7 |
Organic Content (%) | ≤7 |
KNB | KNB=（Na2+K2O+CaO+MgO+BaO)*100 |
