Descriptions

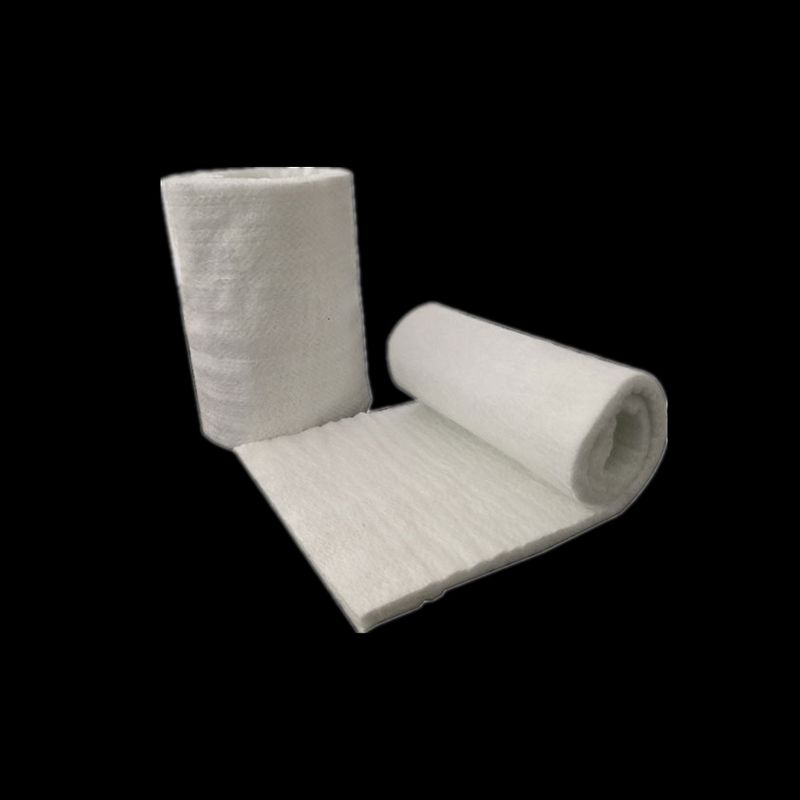

The glass fiber needle mat is made of the E-glass fiber with finer filament by needle mat manufacturing machine. Tiny voids formed in the manufacturing process impart excellent heat insulation property to the product. The non-binder content insulation and electrical properties of E-glass make the needle mat an outstanding and environmental friendly product within the insulation material field.
Features
Heat performance light performance: Inorganic, non-combustibility
The coefficient of linear thermal expansion:48X10-6cn/cm/°C
Specific heat:0.19cal/9°C
Heat exchange rate:0.19kcal/m.h°C
Softening temperature:850°C
Refractive index:(25°C):1.55
Mechanical Properties: fiberglass bears high tensile strength and stablility
High tensile strength:350kg/mm2
Modules of elasticity:7300kg/mm2
Elongation at 25°C:4.8%
Typical Applications
-Automotive
-Rail
-Ship building
-Chemical
-Construction (Home, Retail and Industrial)
-Installations (pipelines, boilers and furnaces)
-Household appliances
-Machine rooms, Pumping station, Power plant
Product size
Thickness（mm) | Width（mm) | Density（kg/m3) | Gram Heavy（g/m2) | Length（m) |
2 | 1050 | 100 | 200 | 40 |
3 | 1050 | 120 | 360 | 40 |
4 | 1050 | 130 | 520 | 40 |
5 | 1050 | 140 | 700 | 30 |
6 | 1050 | 140 | 840 | 30 |
8 | 1050 | 140 | 1120 | 20 |
10 | 1050 | 150 | 1500 | 20 |
12 | 1050 | 150 | 1800 | 20 |
15 | 1050 | 160 | 2400 | 15 |
20 | 1050 | 140-170 | 3200-4000 | 10 |
25 | 1050 | 150-180 | 4500-5000 | 10 |
Chemcial Analysis(%) | E-GLASS FIBER NEEDLE MAT | |
SiO₂ | 52-56 | |
Al₂O₃ | 12-16 | |
CaO | 16-25 | |
MgO | 0-6 | |
B2O3 | 8-13 | |
