DAYAWOOL
Descriptions

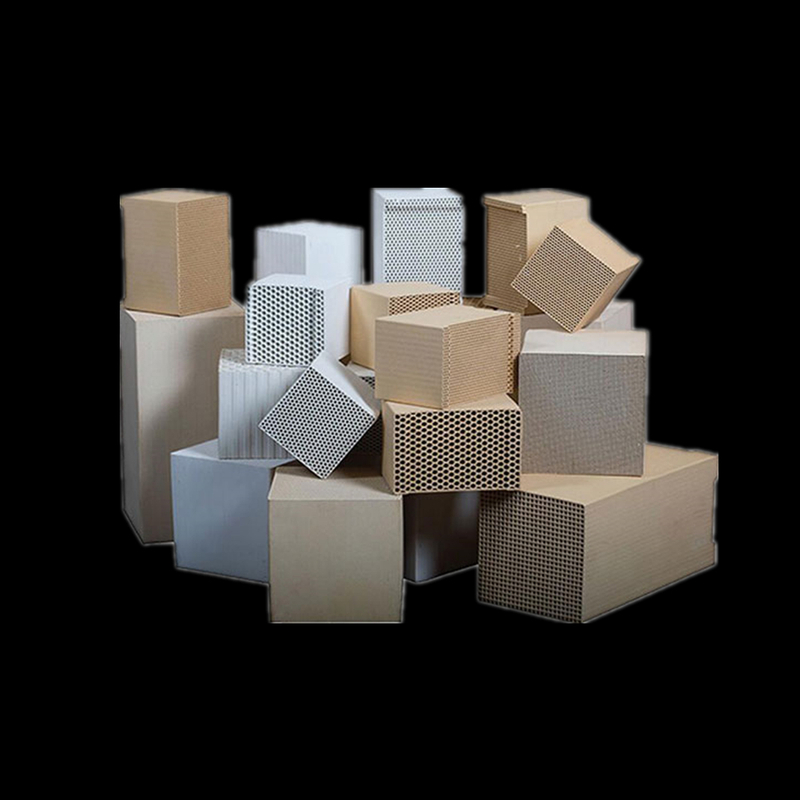

The honeycomb ceramic as heat transfer media is the key part for heat storing HTAC(High Temperature Air Combustion)technology,which has low heat expansion coefficient,large surface area,good heat stability and anti-corrosion.It has got wide application in many industrial productions(especiallu it was widely application in RTO/RCO system by domestic market and global market).Our company has produced more than 10 types of honeycomb ceramic heat storage substrate accoring to the USA and european series of honeycomb ceramic materials.
Typical Application:
high temperature heat accumulation and exchange in industrial waste gas treatment for metallurgical , chemical and construction material industries.
Material:
high alumina porcelain ,
loose cordierite,
mullite-cordierite,
alumina porcelain ,
corundum/Mullite etc.
1. Physical specification
UNIT | Mullite | |
Density | g/cm3 | 2.1-2.4 |
Specific heat capacity | J/Kg·k | ≥900 |
Thermal expansion coefficient | ×10－6·℃－1（20～1000℃） | 5.0-6.0 |
Coefficient of heat conductivity | w/m·k | ≥1.5 |
Max service temperature | ℃ | 1450 |
Shock resistance | Temp-300℃/Time (air cooling) | 3 |
Acid resistance | % | 97.5 |
Water absorption | % | 13-20 |
2. Chemical composition （％）
SiO2 | Al2O3 | Fe2O3 | K2O | Na2O | CaO | MgO | |
Mullite | 22-28 | 63-70 | <1 | 1-2 | <1 | ||
3. Geometric data
Outside dimension(mm) | 150*150*300 | 150*150*300 | 150*150*300 | 150*150*300 | 150*150*300 | 100*100*150 | 100*100*150 |
Holes | 25*25 | 40*40 | 43*43 | 50*50 | 60*60 | 26*26 | 33*33 |
Hole width | 5.0mm | 3.0mm | 2.8mm | 2.4mm | 2.0 | 3.0 | 2.27 |
Inner walls | 0.95mm | 0.67mm | 0.65mm | 0.6mm | 0.5mm | 0.67mm | 0.6mm |
Outside walls | 1.2-1.5mm | 1.0-1.3mm | 1.0-1.3mm | 0.8-1.1mm | 0.8-1.1mm | 1.0-1.3mm | 0.8-1.1mm |
Spec. area | 582m2/m3 | 892 m2/m3 | 964m2/m3 | 1104 m2/m3 | 1291 m2/m3 | 892 m2/m3 | 1104 m2/m3 |
Void fraction | 69% | 66% | 64% | 62% | 62% | 66% | 62% |
Weight | 4.7Kg | 5Kg | 5.1Kg | 5.2Kg | 5.4Kg | 1.1Kg | 1.15Kg |
